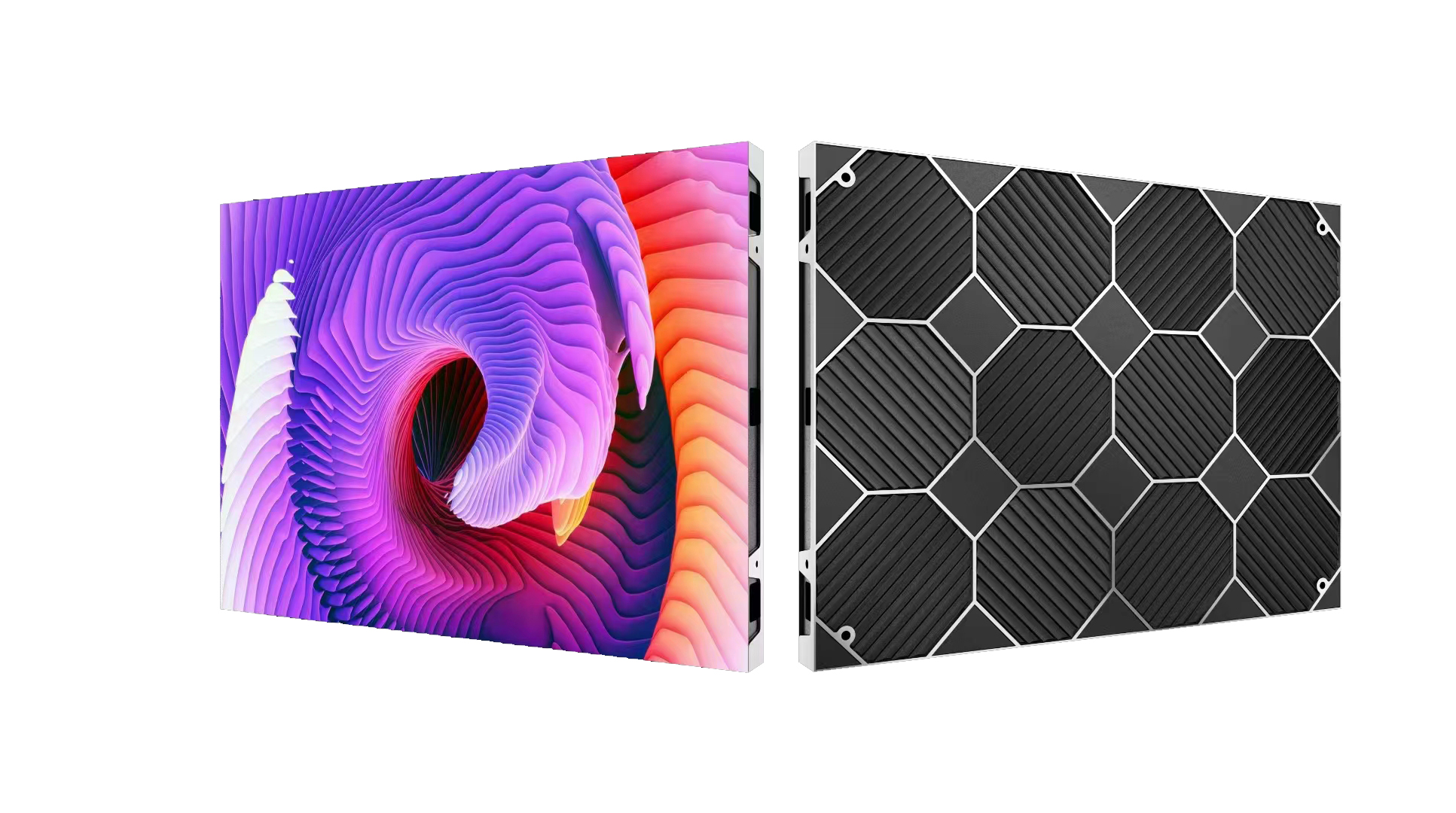

Description
Totally Front Service
Modules are designed without back shell;
HUB cards and PSU can be taken down and maintained quickly;

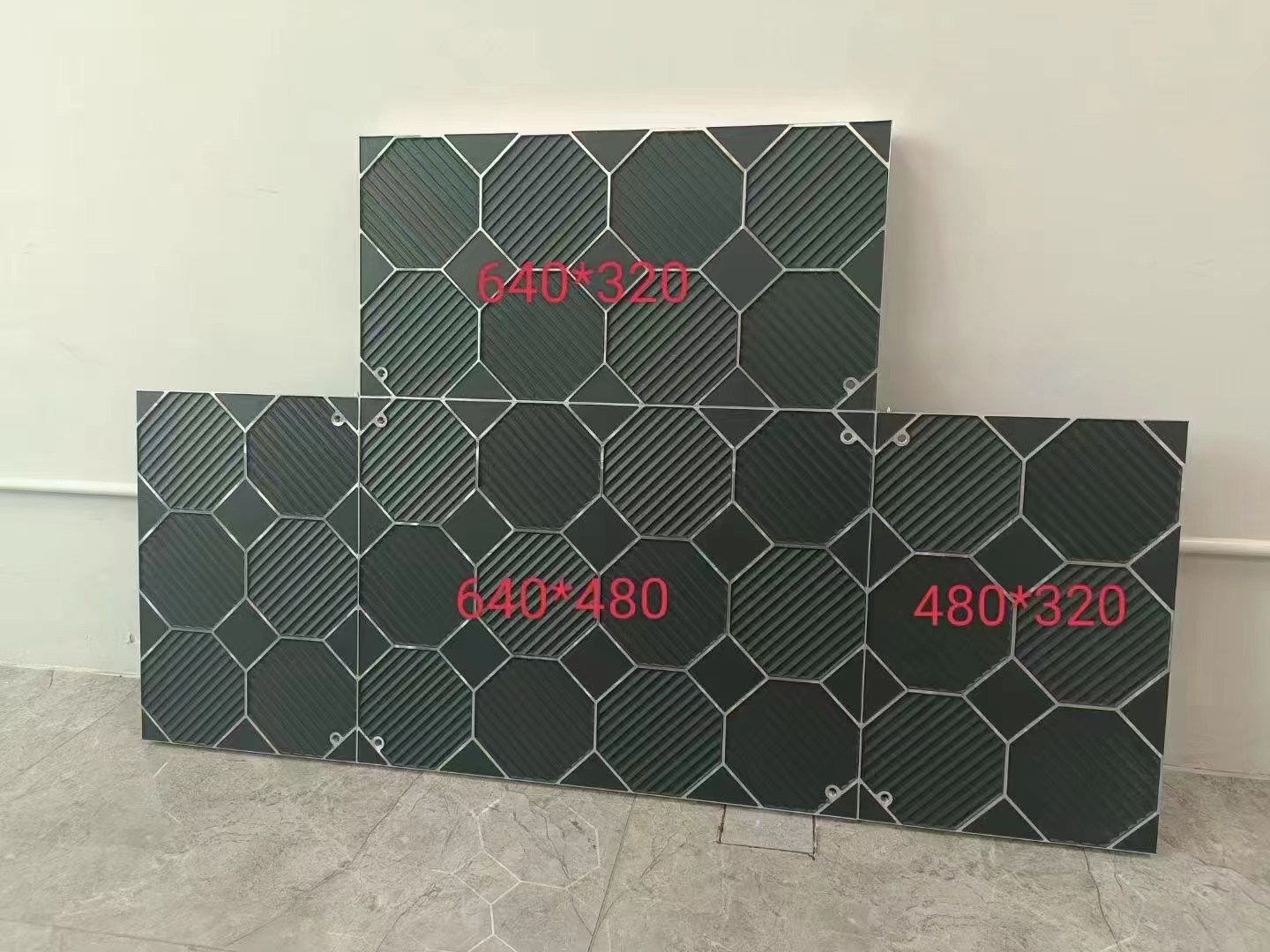

Flexible Sizes
Cabinet size can be 640x480mm, 480x320 and 640x320mm.
High Refresh Rate & Grayscale
High refresh rate is 3840Hz and grayscale is 14bits-16bits. VE Series delivers high quality image and vivid color.
| Model No | VE12 | VE15 | VE16 | VE18 | VE2 | VE25 |
|---|---|---|---|---|---|---|
| Pixel Pitch（mm） | 1.25 | 1.53 | 1.66 | 1.86 | 2 | 2.5 |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Module Size（mm） | 320x160x15 | |||||
| Module Resolution（dots） | 256×128 | 208×104 | 192×96 | 172×86 | 160x80 | 128x64 |
| Pixel Density (dots/sq.m) | 640,000 | 422,500 | 360,000 | 288,906 | 250,000 | 160,000 |
| Cabinet Size（W*H*D) | 640x480x65mm | |||||
| Module Resolution（dots） | 512×384 | 416×312 | 384×288 | 344×258 | 320x240 | 256x192 |
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight（kg/pcs） | 7.5 | |||||
| maintenance method | Front | |||||
| Brightness | 500 | 500 | 600 | 600 | 800 | 800 |
| Best VEwing Distance | ≧1m | ≧1m | ≧1.5m | ≧1.5m | ≧2m | ≧2.5m |
| Best VEwing Angle | H160/V160 | |||||
| Max Power consumption (watts/sq.m) | 600 | |||||
| Average Power Consumption (watts/sq.m) | 200 | |||||
| Grey Scale(bit) | 14 | |||||
| Color Temperature(K) | 6500-9300 | |||||
| Driving Method | 1/64 Scan | 1/52 Scan | 1/48 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Refresh Rate | ≥3840Hz | |||||
| Operating Voltage | 100～240 | |||||
| Working Humidity | 10%～90% | |||||
| Working Temperature | ﹣20℃～+50℃ | |||||
| IP Rating (Front/Back) | IP3X/IP3X |
