Description

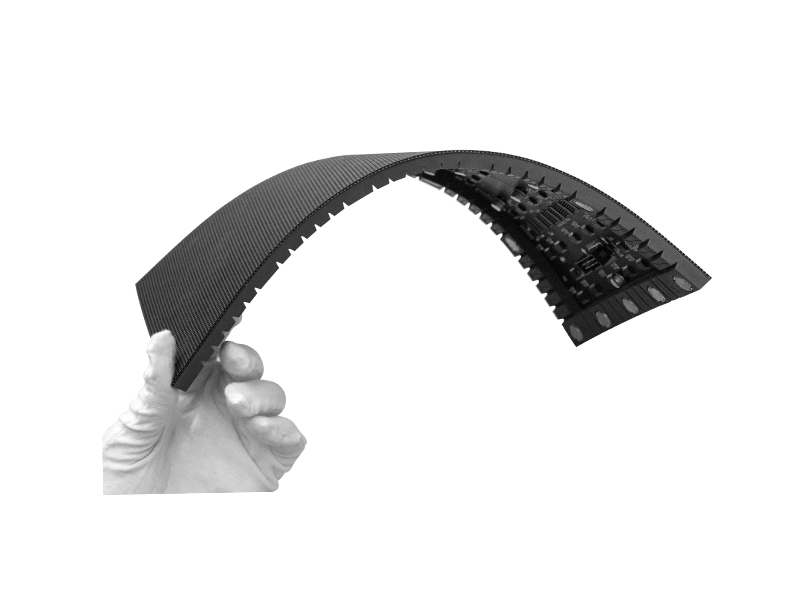

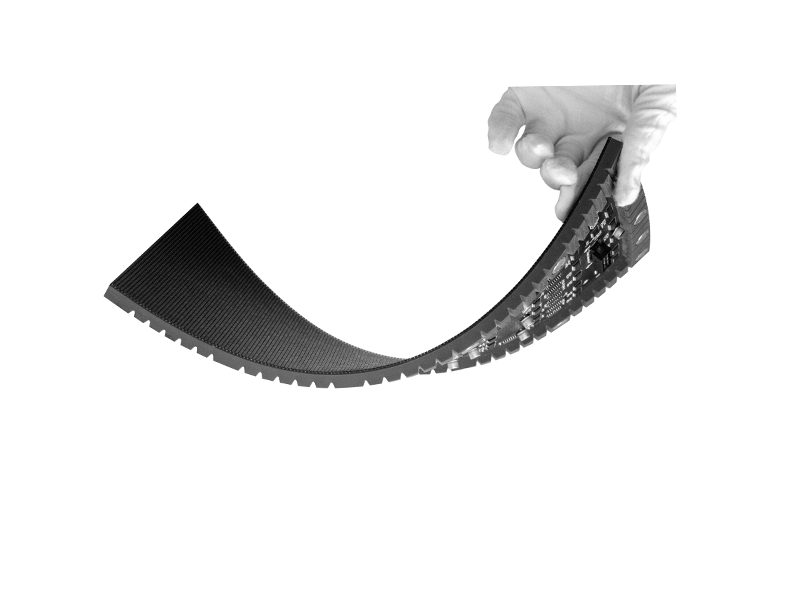

Concave or Convex
Module can make convex or concave shape of LED display.

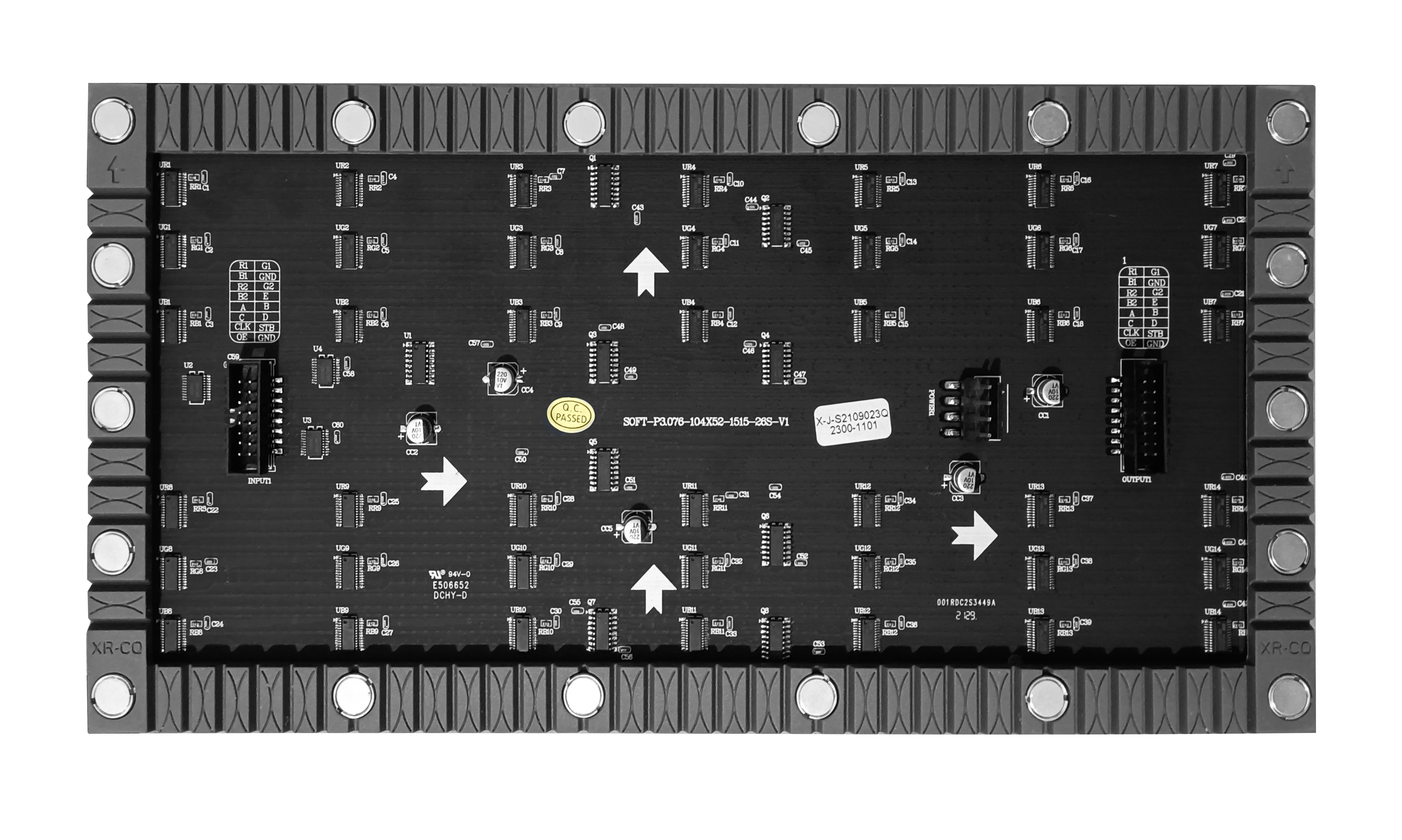

Module with magnets
Module with magnets and maintainence can be served from front
| Model No | VF1.86 | VF2 | VF2.5 | VF3 |
|---|---|---|---|---|
| Pixel Pitch（mm） | 1.86 | 2 | 2.5 | 3.076 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Module Size（mm） | 320x160x8.6 | |||
| Module Resolution（dots） | 172×86 | 160×80 | 128×64 | 104×52 |
| Module Power consumption (Watts) | ≤25 | |||
| Pixel Density (dots/sq.m) | 288906 | 250000 | 160000 | 105625 |
| maintenance method | Front | |||
| Brightness | 600 | 700 | 750 | 750 |
| Best VNwing Distance | ≧1.5m | ≧2m | ≧2.5m | ≧3m |
| Best VNwing Angle | H160/V160 | |||
| Max Power consumption (watts/sq.m) | 600 | |||
| Average Power Consumption (watts/sq.m) | 200 | |||
| Grey Scale(bit) | 14 | |||
| Color Temperature(K) | 6500-9300 | |||
| Driving Method | 1/64 Scan | 1/60 Scan | 1/64 Scan | 1/45 Scan |
| Refresh Rate | ≥3840Hz | |||
| Operating Voltage | 100～240 | |||
| Working Humidity | 10%～90% | |||
| Working Temperature | ﹣20℃～+50℃ | |||
| IP Rating (Front/Back) | IP3X/IP3X |
