Description

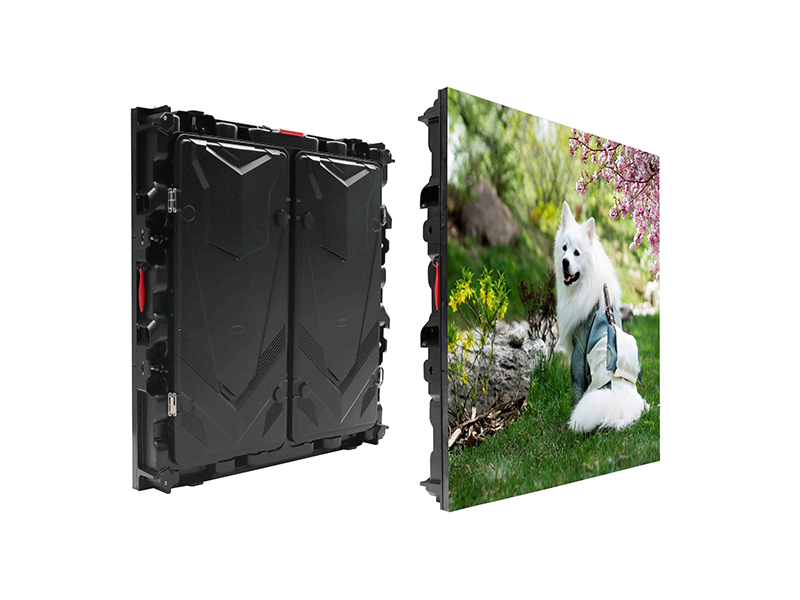

High Precision Cabinet & Multi Pixel Pitches
Cabinet is made by die casting aluminum with high precision. Pixel pitches ranges from 2.5mm to 10mm
Front Service & Back Service Type Optional

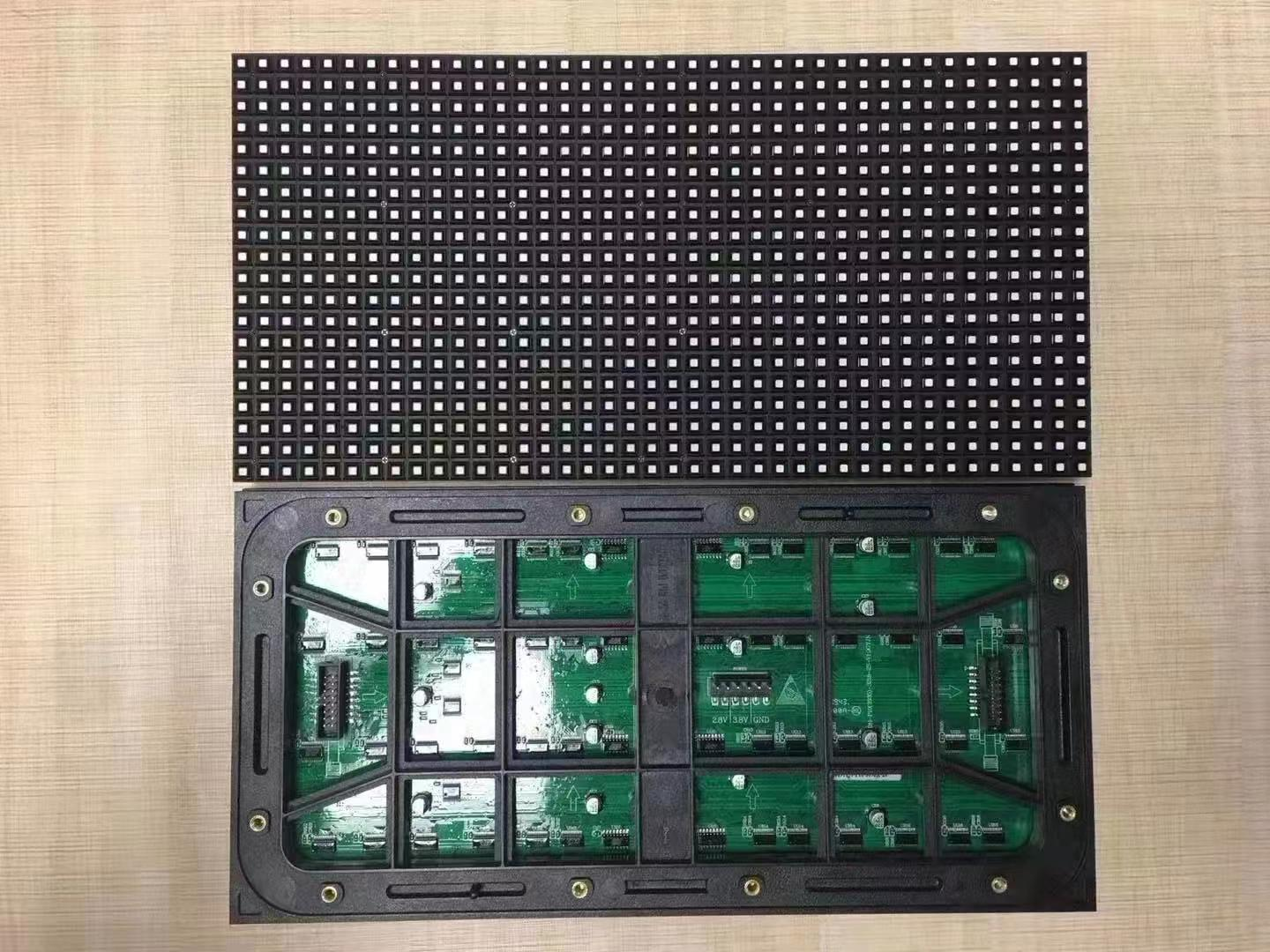

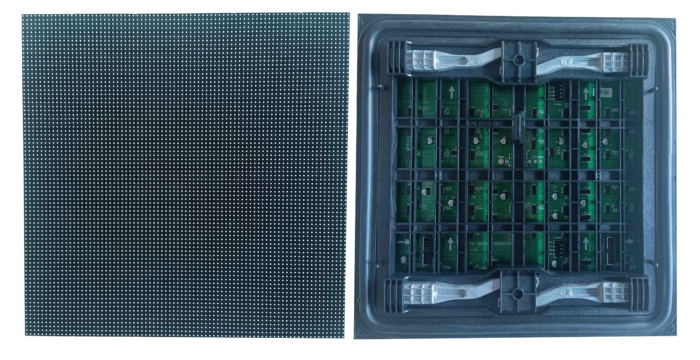

Module can be 320mm x 160mm or 320mm x 320mm. Front service and back service are optional

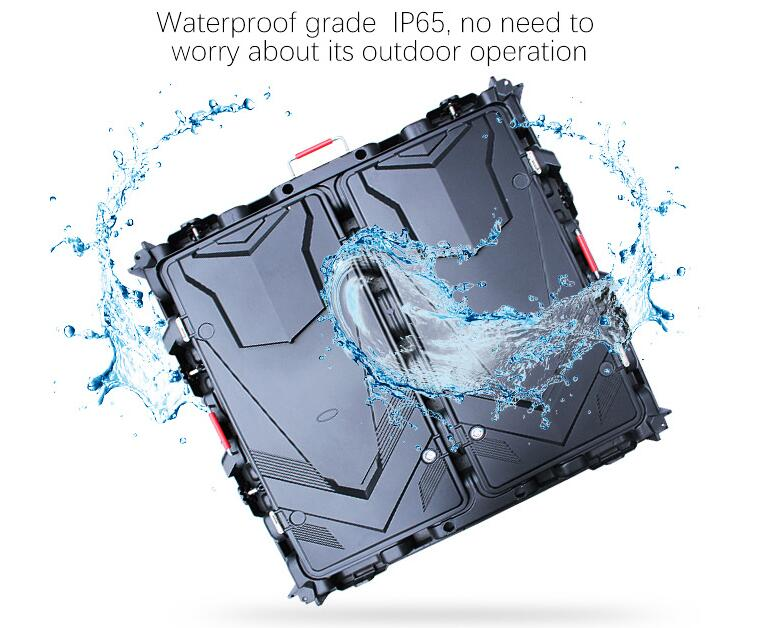

High IP Rating Design & Wide View Angle

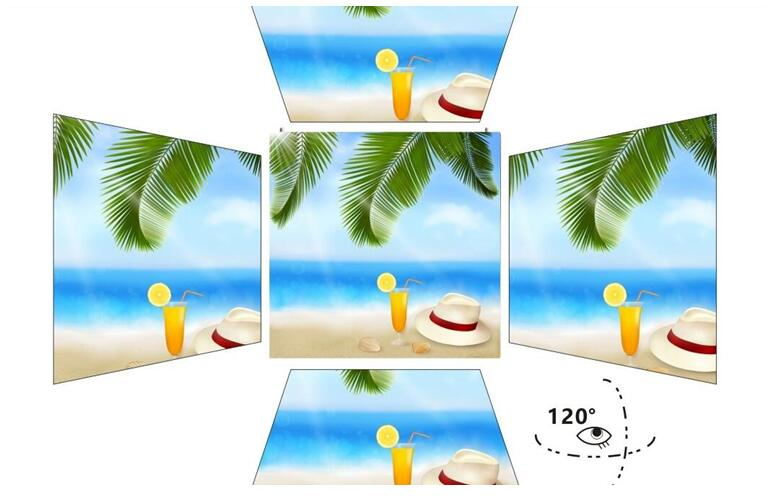

Cabinet is designed with high IP rating and high reliability. View angle is so wide reaching over 120°.

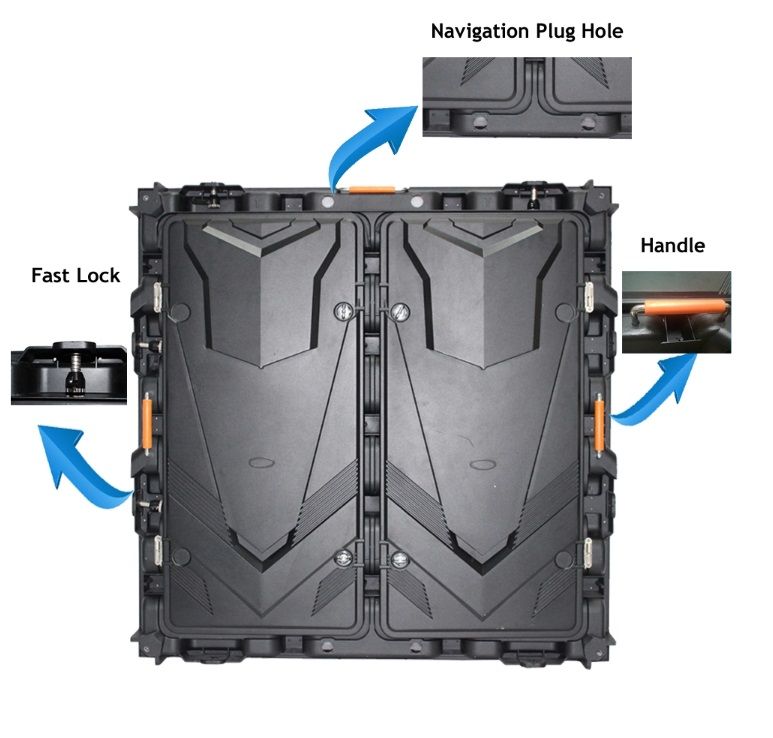

Fast Lock Design
Cabinet is with fast lock making installation faster and easier.
| Model No | VON4 | VON5 | VON6 | VON8 | VON10 |
|---|---|---|---|---|---|
| Pixel Pitch (mm） | 4 | 5.33 | 6.67 | 8 | 10 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm） | 320x320/320x160 | ||||
| Module Resolution (dots） | 80x80/80x40 | 60x60/60x30 | 48x48/48x24 | 40x40/40x20 | 32x32/32x16 |
| Module Power consumption (Watts) | 65 | 65 | 65 | 65 | 75 |
| Module Weight (K.G.） | 1 | ||||
| Pixel Density (dots/sq.m) | 62500 | 35200 | 22477 | 15625 | 10000 |
| Cabinet Size (W*H*D) | 960x960mm | ||||
| Cabinet Resolution (dots) | 240*240 | 180*180 | 144*144 | 120*120 | 96*96 |
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight (K.G./Sq.m） | 30 | ||||
| Maintenance Method | Front or Rear | ||||
| Brightness (Nits) | 5500 | 5500 | 5500 | 6000 | 6800 |
| Best Viewing Distance | ≧4m | ≧5m | ≧6m | ≧8m | ≧10m |
| Best Viewing Angle | H140/V140 | ||||
| Max Power consumption (Watts/Sq.m) | 800 | 800 | 800 | 700 | 800 |
| Average Power Consumption (Watts/Sq.m) | 270 | 270 | 270 | 235 | 270 |
| Grey Scale(Bit) | 14 | ||||
| Color Temperature(K) | 6500-9300 | ||||
| Driving Method | 1/10 Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| Refresh Rate (Hz) | ≥1920 | ||||
| Operating Voltage(V) | 100～240 | ||||
| Working Humidity | 10%～90% | ||||
| Working Temperature | ﹣20℃～+50℃ | ||||
| IP Rating (Front/Back) | IP65/IP54 |
