Description

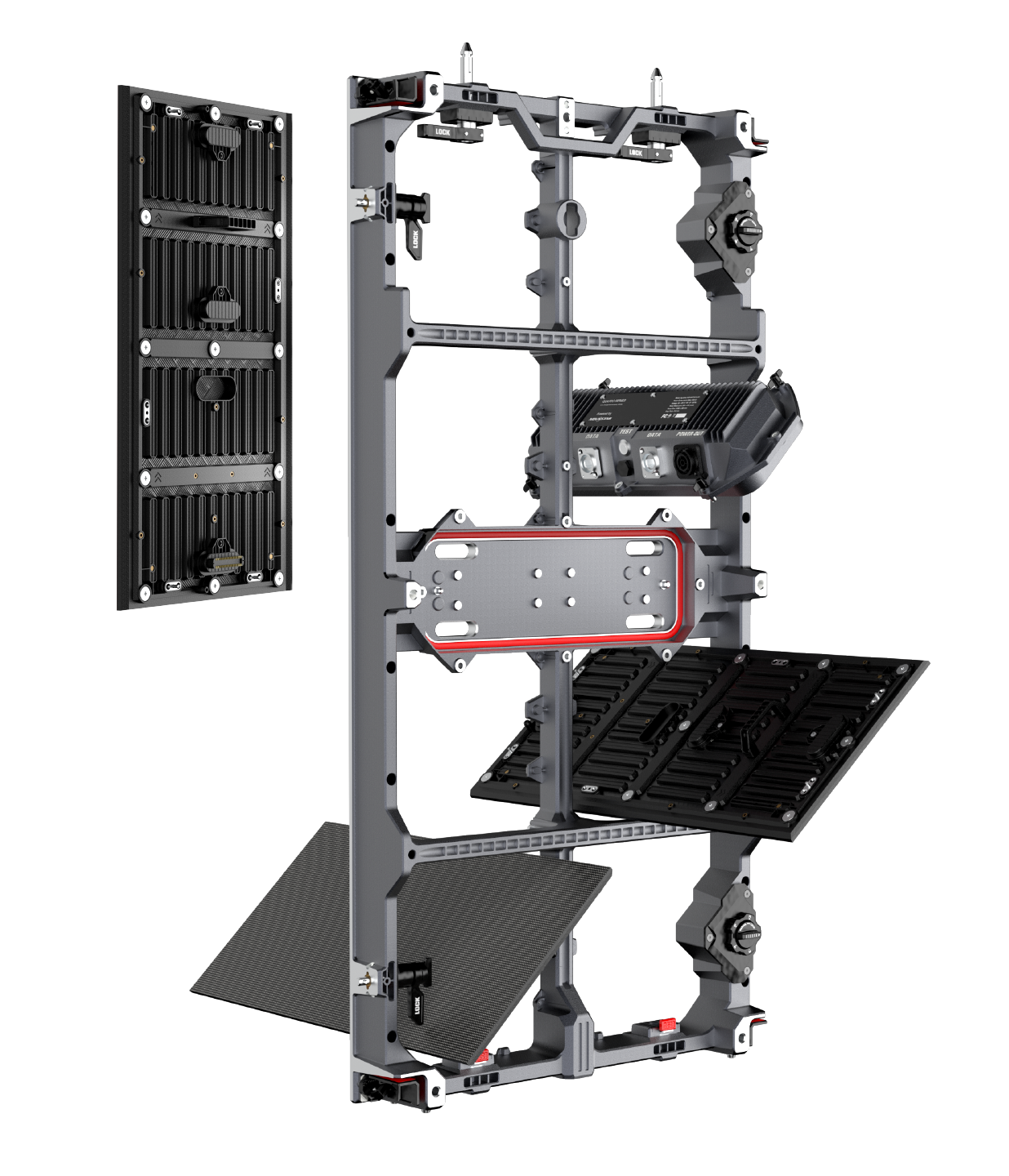

Front Service
Modules and control box can be released from front and back.

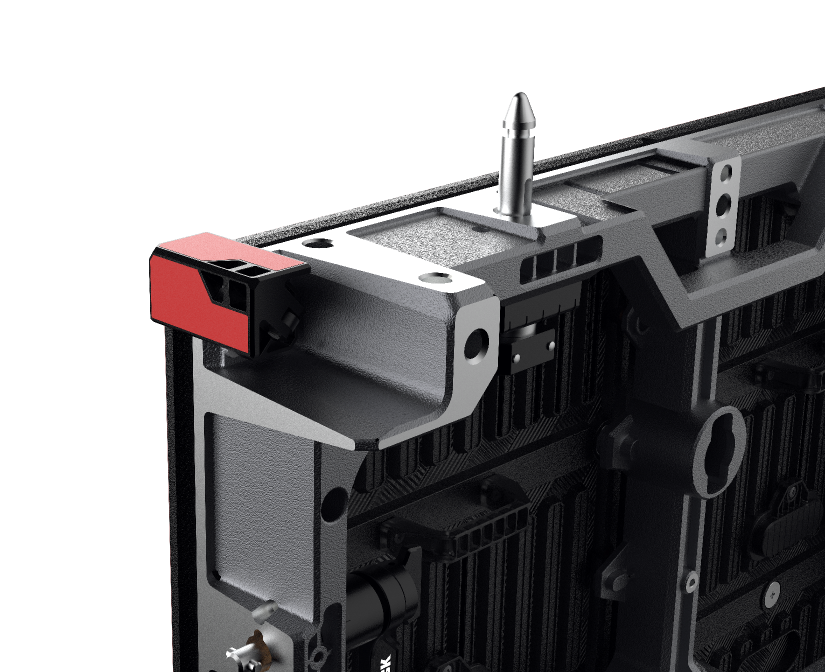

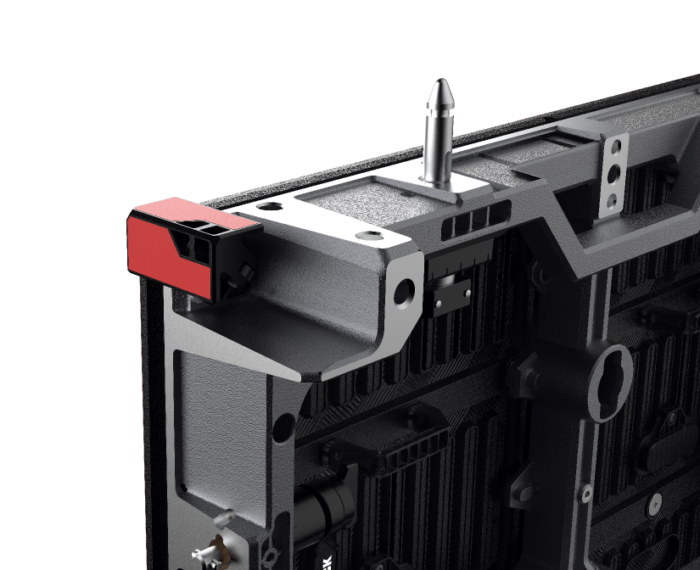

Corner Protection
Cabinet is with corner protection for LEDs protecting LEDs from damage

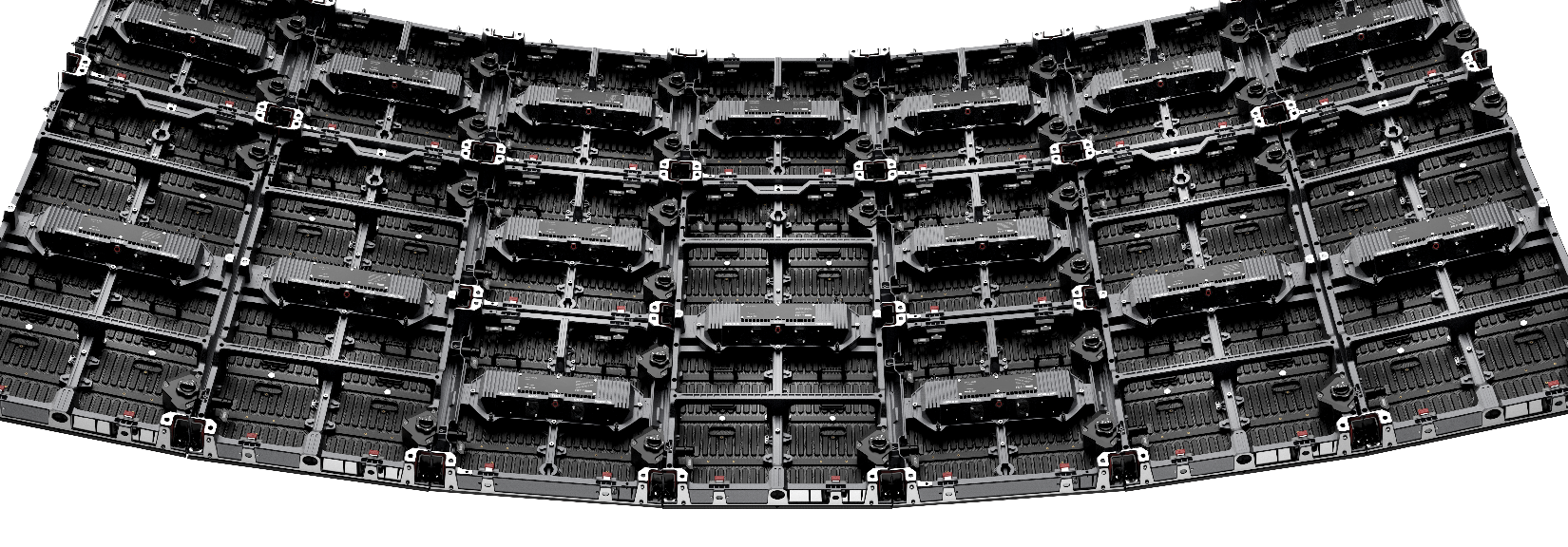

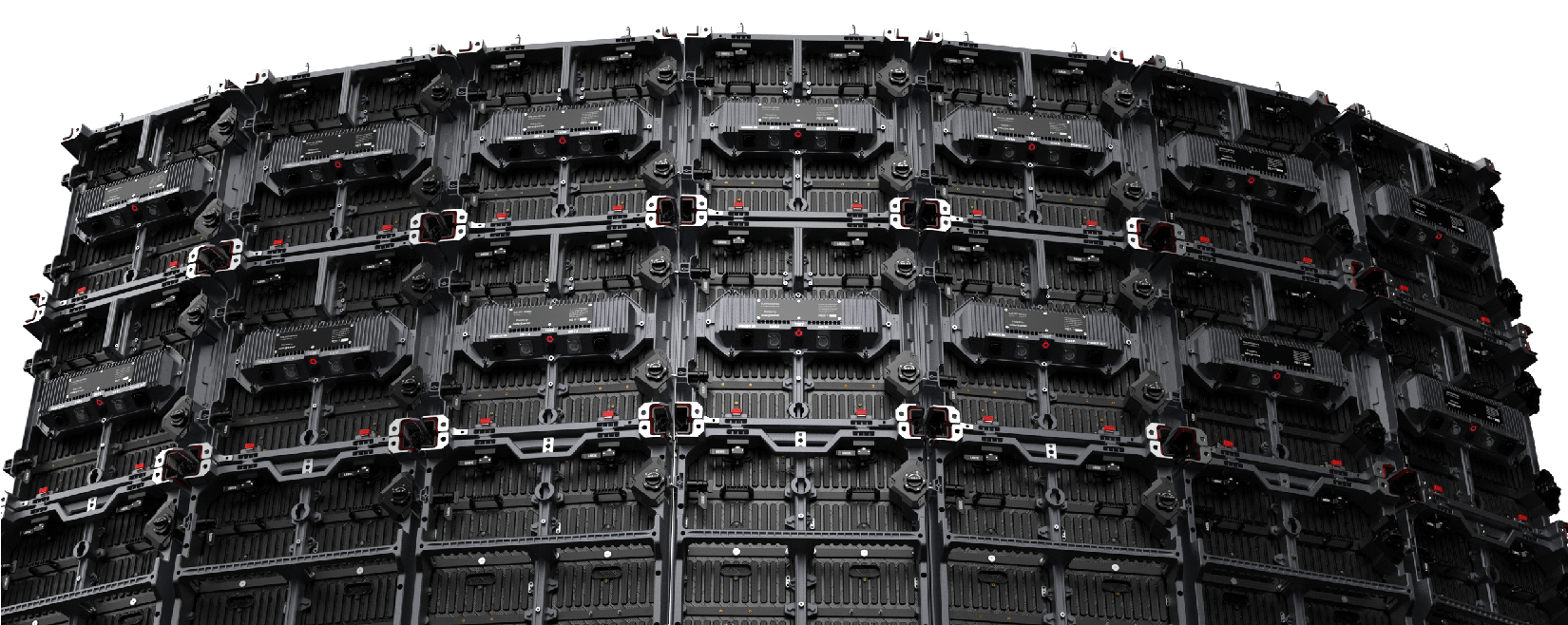

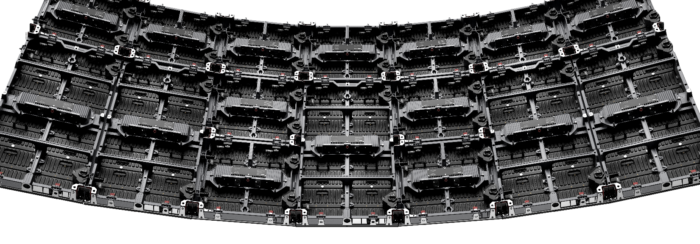

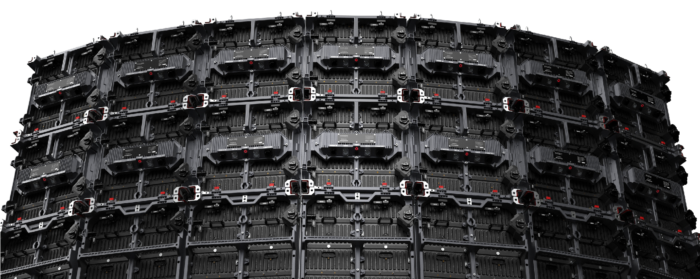

Concave & Convex
LED display can be made curved shape from concave -10º to convex +10º

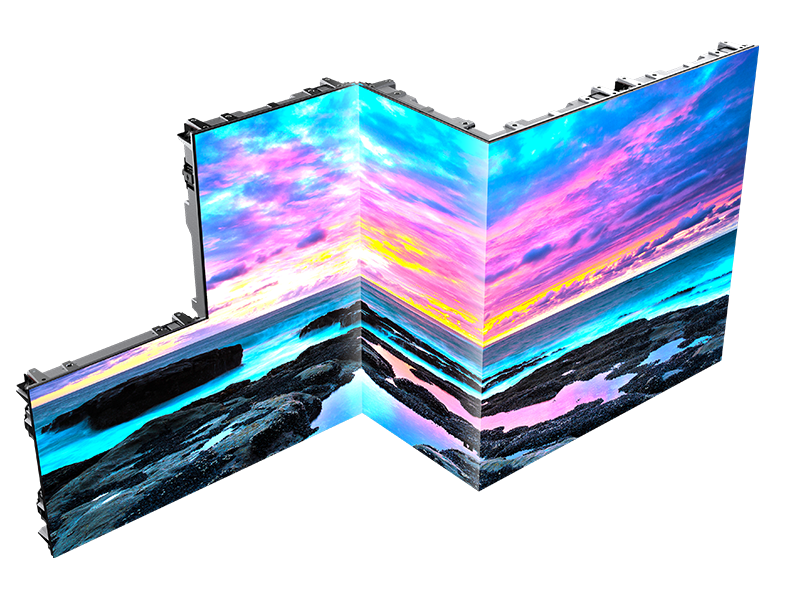

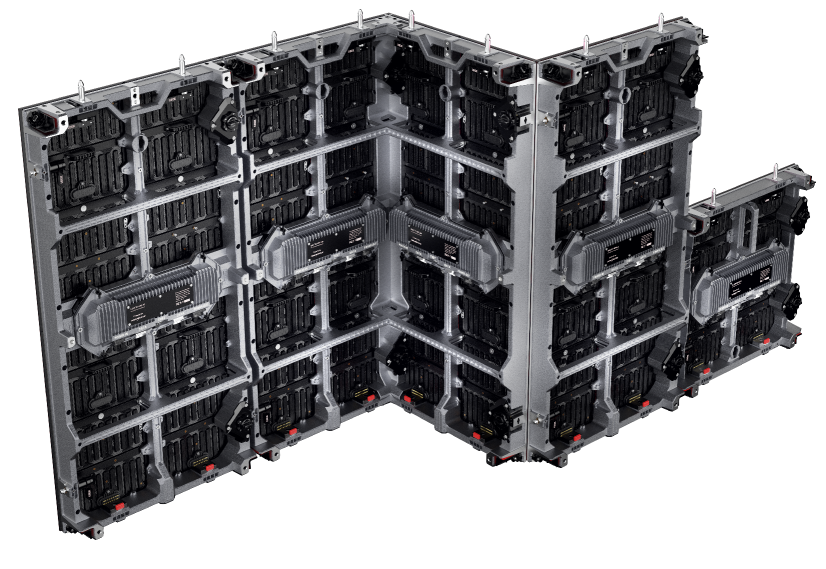

Rectangular Splicing
Cabinets can be combined freely to cut-corner and corner （-90º~0º） screen horizontally.
| Type | Indoor | Outdoor | ||||||
|---|---|---|---|---|---|---|---|---|
| Model No | VRH15 | VRH26i | VRH29i | VRH3i | VRH26o | VRH29o | VRH3o | VRH4o |
| Pixel Pitch（mm） | 1.5 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | 4.81 |
| LED Type | SMD1212 | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Module Size（mm） | 250x250 | 250x250 | 250x250 | 250x250 | 250x500 | 250x500 | 250x500 | 250x500 |
| Module Resolution（dots） | 160×160 | 96×96 | 84×84 | 64×64 | 96×192 | 84×168 | 64×128 | 52×104 |
| Pixel Density (dots/sq.m) | 409600 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 |
| Cabinet Size（W*H*D) | 500x500x93mm | 500x1000x93mm | ||||||
| Cabinet Material | Die Casting Aluminum | |||||||
| Cabinet Weight（kg/pcs） | 9 | 12 | 14.5 | |||||
| maintenance method | Front or Rear | |||||||
| Brightness | 800 | 1000 | 1000 | 1000 | 5000 | 5500 | 5500 | 5500 |
| Best Viewing Distance | ≧1m | ≧2m | ≧2.5m | ≧3m | ≧2m | ≧3m | ≧4m | ≧5m |
| Best Viewing Angle | H140/V140 | |||||||
| Max Power consumption (watts/sq.m) | 420 | 800 | ||||||
| Average Power Consumption (watts/sq.m) | 140 | 250 | ||||||
| Grey Scale(bit) | 14 | |||||||
| Color Temperature(K) | 6500-9300 | |||||||
| Driving Method | 1/40 Scan | 1/24 Scan | 1/28 Scan | 1/16 Scan | 1/24 Scan | 1/14 Scan | 1/8 Scan | 1/8 Scan |
| Refresh Rate | ≥3840Hz | |||||||
| Operating Voltage | 100～240 | |||||||
| Working Humidity | 10%～90% | |||||||
| Working Temperature | ﹣20℃～+50℃ | ﹣30℃～+60℃ | ||||||

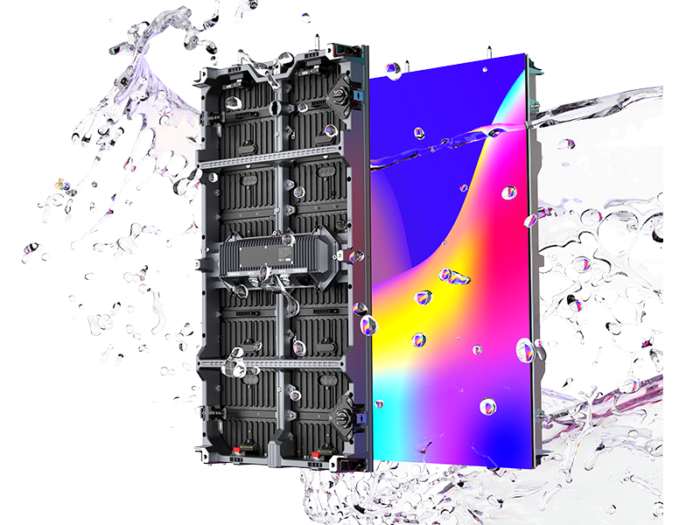

| IP Rating (Front/Back) | IP3X/IP3X | IP65/IP54 | ||||||
