Description
Multi Pixel Pitches & Totally Front & Back Service
Multi pixel pitches avaialble and cabinet can be maintained by either front or back

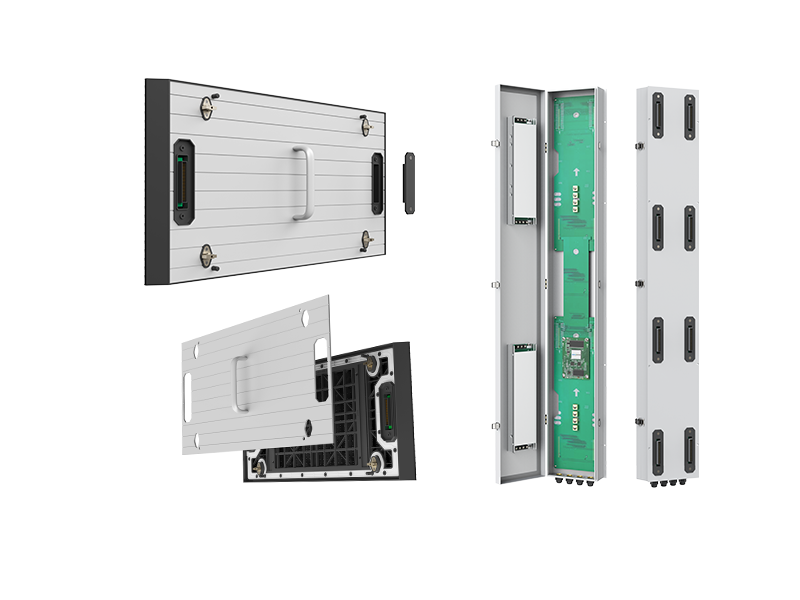

Aluminum Profile Module Housing
Module is made by aluminum profile for better heat dissipation.

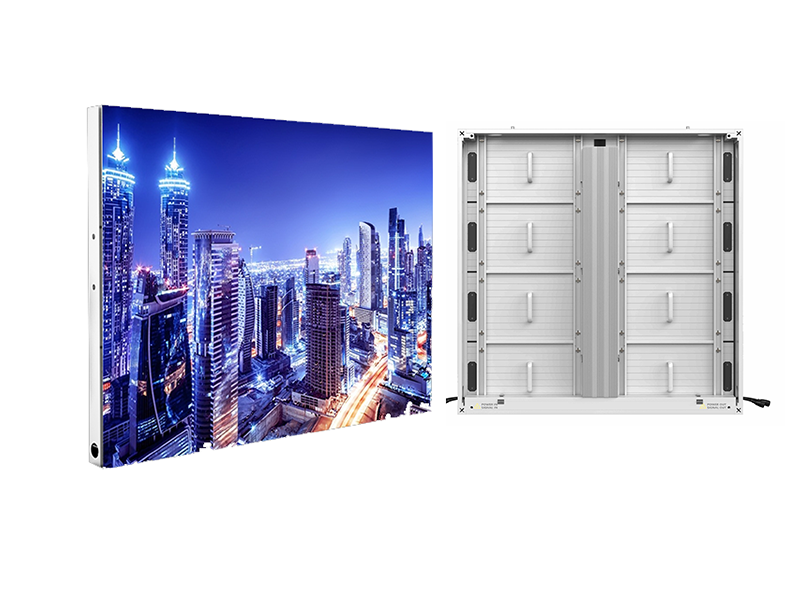

Good appearance & Cable invisiable

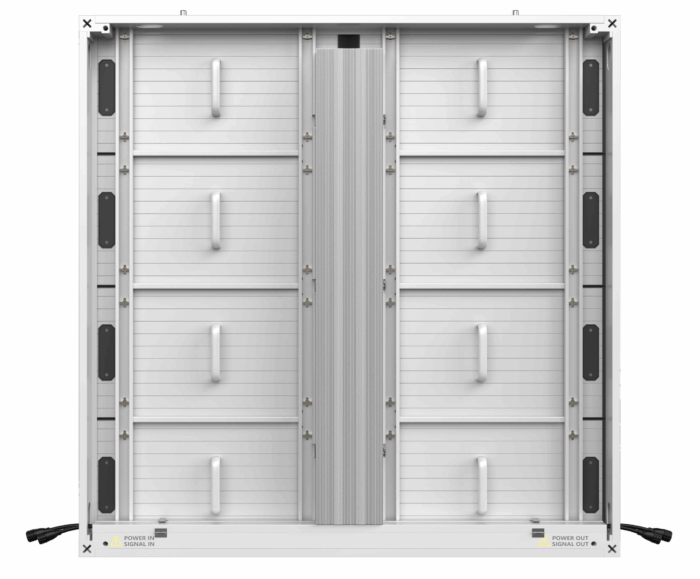

Cabinet size can be 1000x1000mm or 1500x1000mm by aluminum profile. Cable is covered and invisiable.
| Model No | VOS3Ⅰ | VOS3Ⅱ | VOS4Ⅰ | VOS4Ⅱ | VOS6 | VOS7 | VOS10 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch（mm） | 3.91 | 3.91 | 4.81 | 4.81 | 6.25 | 7.81 | 10.417 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Size（mm） | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 |
| Module Resolution（dots） | 128x64 | 128x64 | 104x52 | 104x52 | 80x40 | 64x32 | 48x24 |
| Module Power consumption (Watts) | 85 | 70 | 80 | 60 | 80 | 70 | 70 |
| Module Weight（K.G.） | 2.4 | ||||||
| Pixel Density (dots/sq.m) | 65536 | 65536 | 43264 | 43264 | 25600 | 16384 | 9216 |
| Cabinet Size（W*H*D) | 1000x1000x90mm/1500x1000x90mm/1000x500x90mm | ||||||
| Cabinet Material | Aluminum Profile | ||||||
| Cabinet Weight（kg/sq.m） | 30 | ||||||
| maintenance method | Front or Rear | ||||||
| Brightness | 5500-6000 | 4500-5000 | 5500-6000 | 4500-5000 | 6000-6500 | 6000-6500 | 6000-6500 |
| Best Viewing Distance | ≧3.9m | ≧3.9m | ≧4.8m | ≧4.8m | ≧6.2m | ≧7.8m | ≧10.4m |
| Best Viewing Angle | H140/V140 | ||||||
| Max Power consumption (watts/sq.m) | 750 | 650 | 720 | 600 | 720 | 650 | 650 |
| Average Power Consumption (watts/sq.m) | 250 | 220 | 240 | 200 | 240 | 220 | 220 |
| Grey Scale(bit) | 14 | ||||||
| Color Temperature(K) | 6500-9300 | ||||||
| Driving Method | 1/8 Scan | 1/16 Scan | 1/7 Scan | 1/13 Scan | 1/5 Scan | 1/4 Scan | 1/2 Scan |
| Refresh Rate | ≥1920Hz | ||||||
| Operating Voltage | 100～240 | ||||||
| Working Humidity | 10%～90% | ||||||
| Working Temperature | ﹣20℃～+50℃ | ||||||
| IP Rating (Front/Back) | IP65/IP54 | ||||||
