Description
Soft mask
Mask is made by rubber which is able to provide protection to players from damage

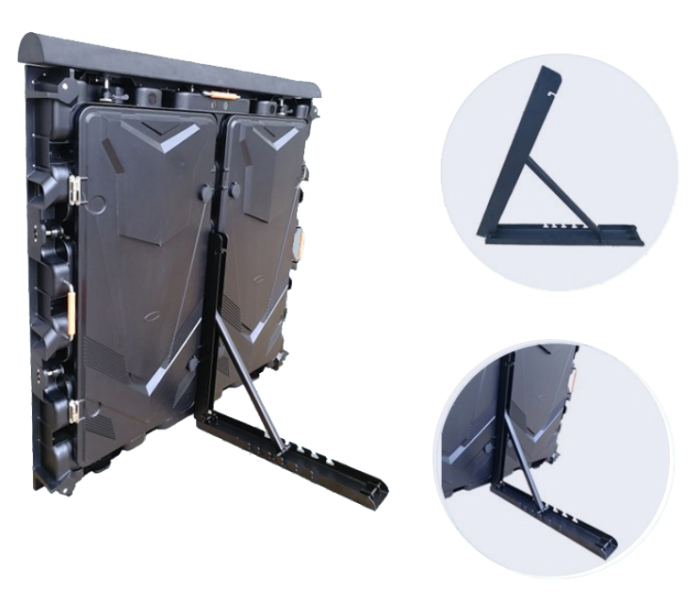

Angle Adjustment
Cabinet is with bracket support which can be adjusted.

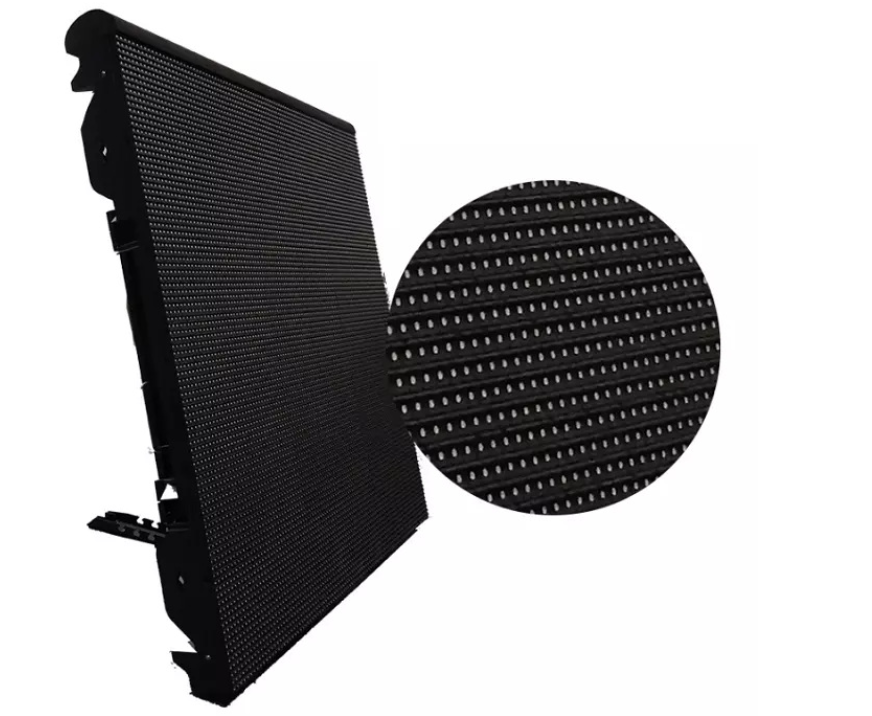

Excellent Performance & Soft Pad on cabinet Top
VSP Series delivers quality images and vivid colors. The top is with soft pad for protection
| Model No | VSP5 | VSP6 | VSP8 | VSP10 |
|---|---|---|---|---|
| Pixel Pitch (mm） | 5 | 6.67 | 8 | 10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm） | 320x160 | |||
| Module Resolution (dots） | 64x32 | 48x24 | 40x20 | 32x16 |
| Module Power consumption (Watts) | 30 | 30 | 30 | 30 |
| Module Weight (K.G.） | 0.8 | |||
| Pixel Density (dots/sq.m) | 35200 | 22477 | 15625 | 10000 |
| Cabinet Size (W*H*D) | ||||
| Cabinet Resolution (dots) | 192*192 | 144*144 | 120*120 | 96*96 |
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight (K.G./Sq.m） | 35 | |||
| Maintenance Method | Back | |||
| Brightness (Nits) | 5500 | 5500 | 6000 | 6800 |
| Best Viewing Distance | ≧5m | ≧6m | ≧8m | ≧10m |
| Best Viewing Angle | 140/140 | |||
| Max Power consumption (Watts/Sq.m) | 800 | 800 | 700 | 800 |
| Average Power Consumption (Watts/Sq.m) | 270 | 270 | 200 | 270 |
| Grey Scale(Bit) | 14 | |||
| Color Temperature(K) | 6500-9300 | |||
| Driving Method | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| Refresh Rate (Hz) | 1920 | |||
| Operating Voltage(V) | 100-240 | |||
| Working Humidity | 10%～90％ | |||
| Working Temperature | －30～50℃ | |||
| IP Rating (Front/Back) | Back |
